Characteristic:

? ? ? Principle of potentiometer, absolute position measurement

? ? ? Conventional output voltage signal, current signal output and RS485 signal output can be customized

? ? ? High precision, good stability, dust and wear resistance

? ? ? The structure is simple and easy to install and use

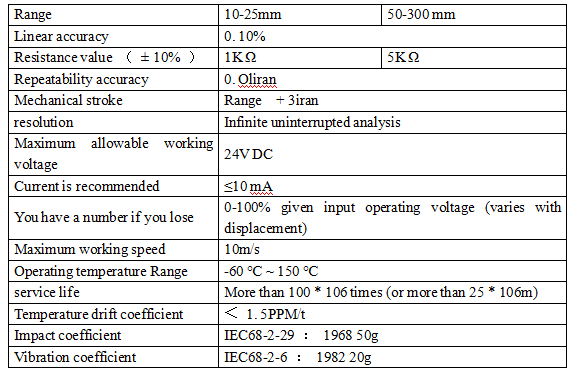

Performance parameters of displacement sensor

? ? ? Model: KPM

? ? ? Range: 10-300mm

? ? ? Resistance: 5K (or 1K)

? ? ? Linear accuracy: ± 0.1%

? ? ? Repeatability accuracy: 0.01mm

? ? ? Resolution: infinite analysis

? ? ? Maximum allowable working voltage: 24V

? ? ? Recommended current: ≤ 10mA

? ? ? Output signal: voltage signal

? ? ? Maximum working speed: 10M / S

? ? ? Service temperature: - 60 ℃ to + 150 ℃

? ? ? Service life: > 100 million times

? ? ? Temperature drift coefficient: < 1.5ppm / ℃

? ? ? Impact coefficient: iec68-2-29: 1968 50g

? ? ? Vibration coefficient: iec68-2-6:1982 20g

Application area:

? ? ?Injection molding set top pin

? ? ?Shoe machine

? ? ?3D seat (5D seat)

? ? ?Prestressed jack

? ? ?Mechanical arm

? ? ?Robot

? ? ?Extractor

? ? ?Brick machine

? ? ?Ceramic machinery

? ? ?Sluice control
